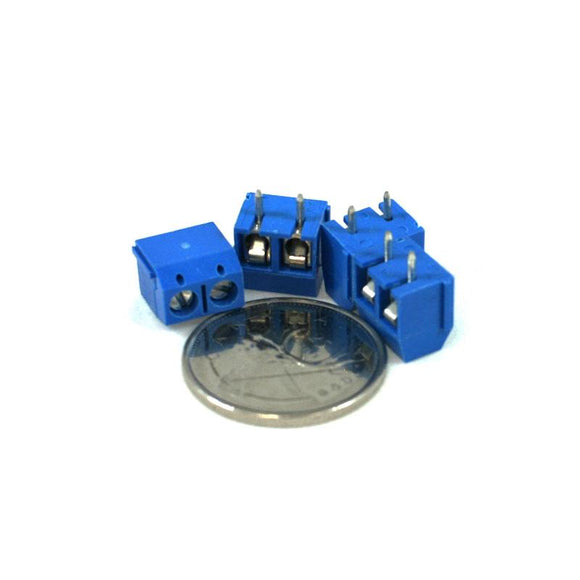

Screw Terminal Blue (5.0mm Pitch 2-pin 4-pack)
  • 100% brand new and high quality
  • Pitch: 5.0mm
  • Screws:M2.5 steel zinc plated brass
  • Poles: 2P, 3P
  • Contact: Steel zinc plated brass, Ni plated
  • Pin header: Brass, Tin plated
  • Housing: PA66.UL94V-0
  • Rated voltage: 300V
  • Rated current: 10A
  • Contact resistance: 20mΩ
  • Insulation resistance: 5000MΩ/1000V
  • Withstanding Voltage: AC1500V/1Min
  • Wire range: 24-12A WG/2.5mm²
  • Temp. Range: -40℃ to 105℃
  • Max Soldering: 250℃ for 5 seconds
  • Torque: 0.4Nm(3.6ib.in)
  • Strip length: 6-7mm
