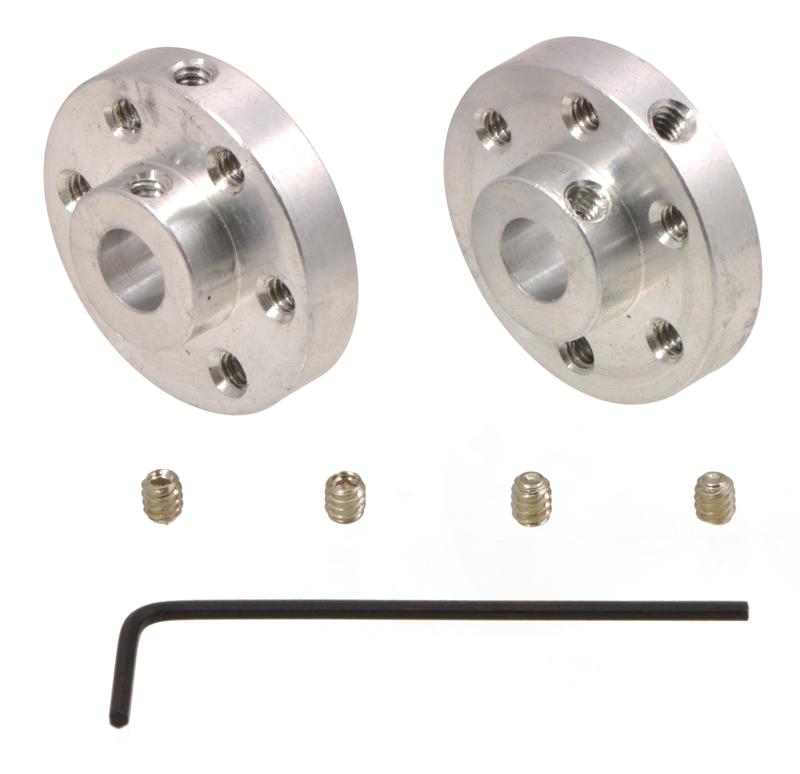

These universal mounting hubs are designed to work with most 0.250 inch (6.35 mm) shafts, including round shafts and “D” shafts, such as those on our NEMA 23 stepper motors. Each of the two included hubs has four mounting holes for M3 screws (not included), letting you mount custom wheels or mechanisms to your motors. The four included M3 hex set screws (two for each hub) allow secure coupling of shaft to hub, and a 1.5 mm hex wrench is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

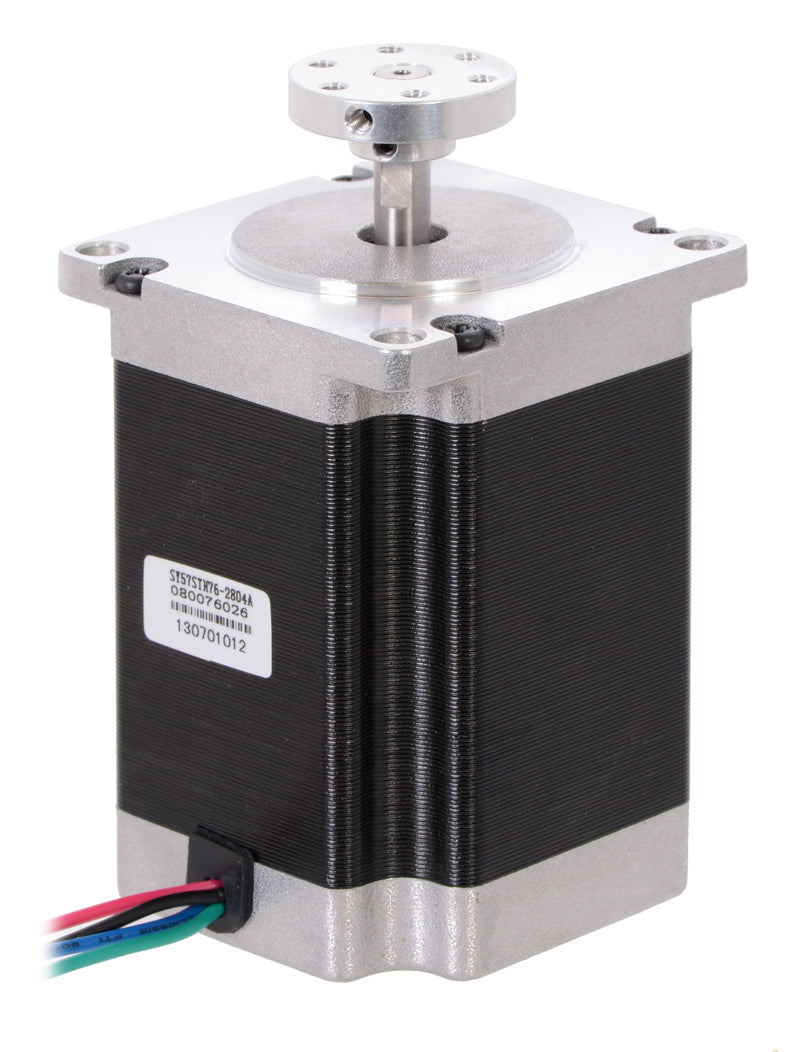

These hubs will work with our NEMA 23 stepper motors, and they also work with 80 mm and 90 mm Pololu wheels.
