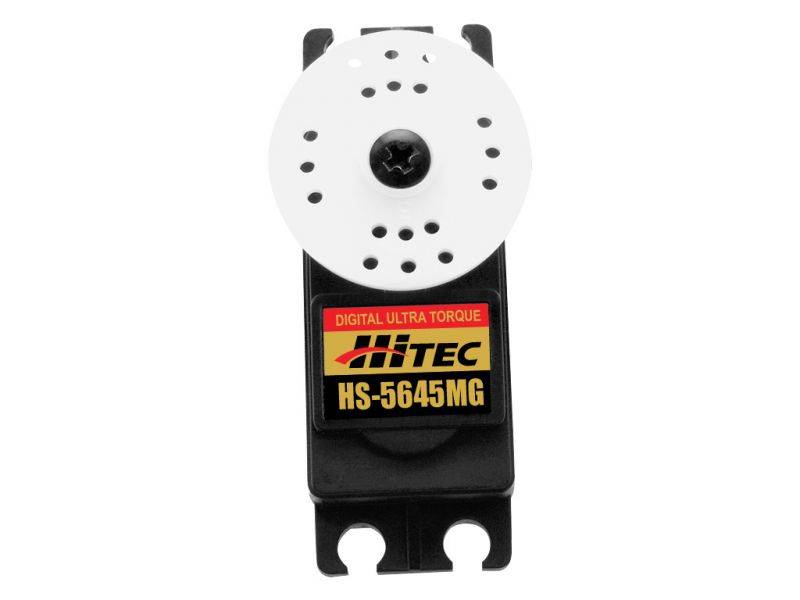

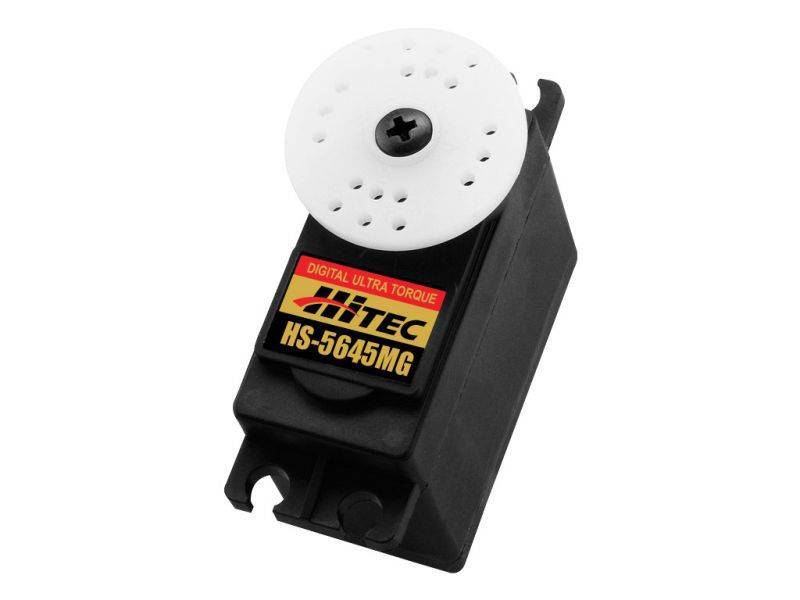

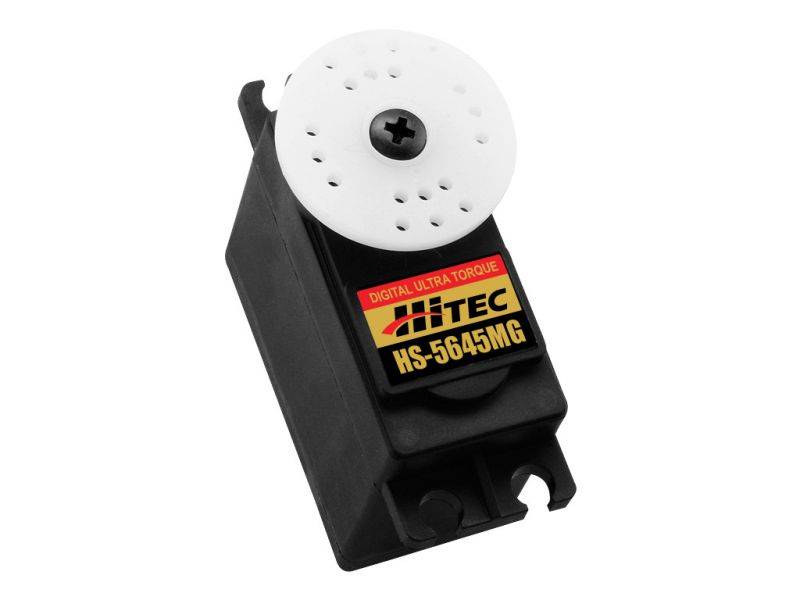

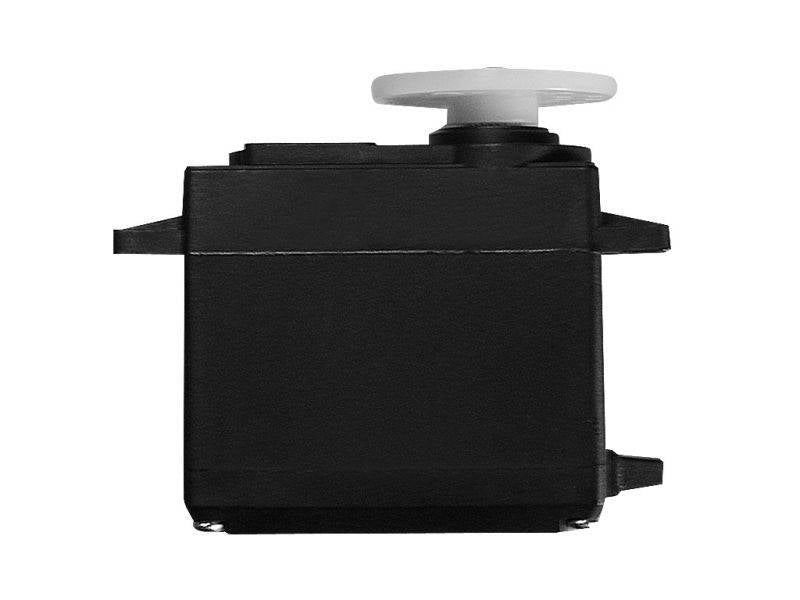

Hitec HS-5645MG High Torque, Metal Gear Digital Sport Servo

The digital version of our popular HS-645 is the HS-5645MG, featuring a programmable digital circuit and our custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother.

Note: Metal Horn (R-ML) Included

Features

  • Top Selling High Torque Standard Digital Servo
  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP Gear Technology
  • Dual Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit Provides Fine Resolution and Centering

Specifications

Motor Type: 3 Pole
Bearing Type: Dual Ball Bearing
Speed (4.8V/6.0V): 0.23 / 0.18
Torque oz./in. (4.8V/6.0V): 143 / 168
Torque kg./cm. (4.8V/6.0V): 10.3 / 12.1
Max. Voltage: 6.0V

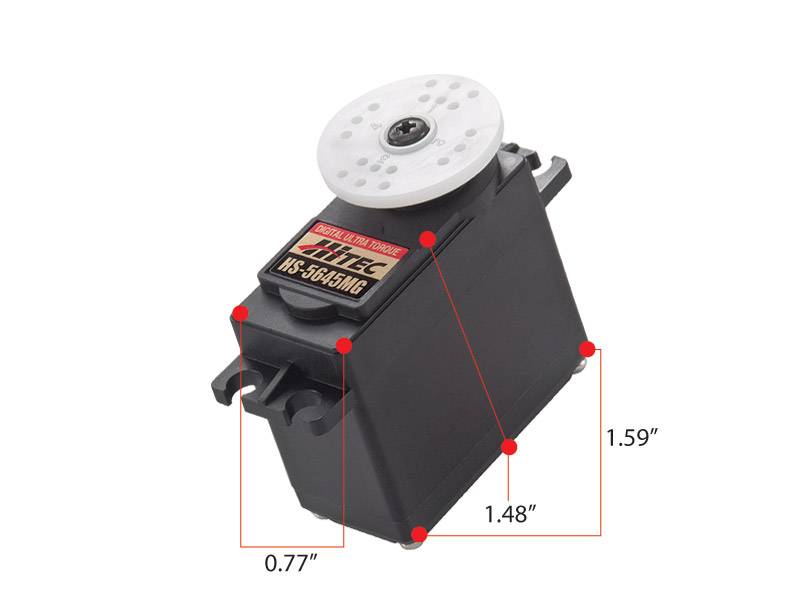

Size in Inches: 1.59 x 0.77 x 1.48
Size in Millimeters: 40.39 x 19.56 x 37.59
Weight ounces: 2.11
Weight grams: 59.82
