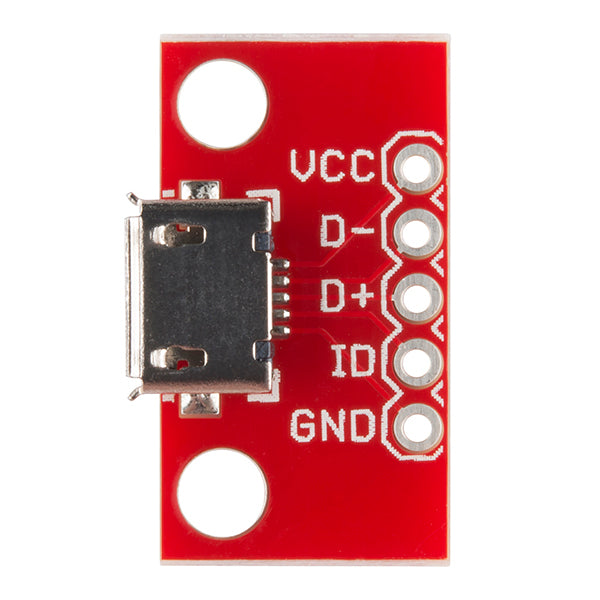

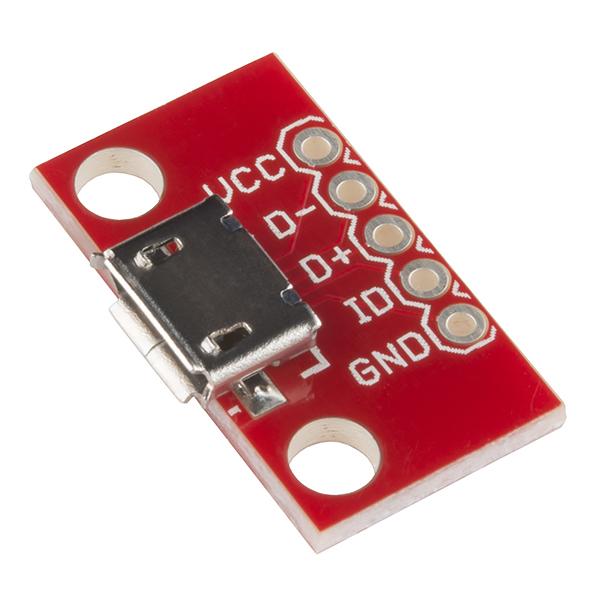

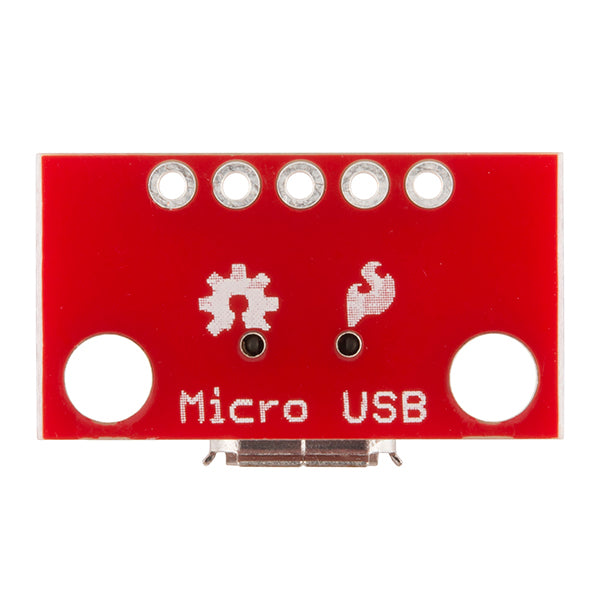

This simple board breaks out a micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you.

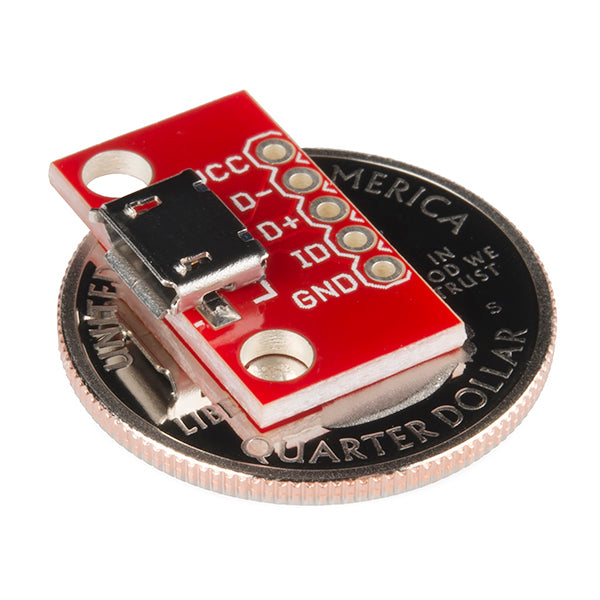

Dimensions: 0.8 x 0.45" (20.3 x 11.4mm)
