NOTE: This is a 360° continuous rotation version of the servo.

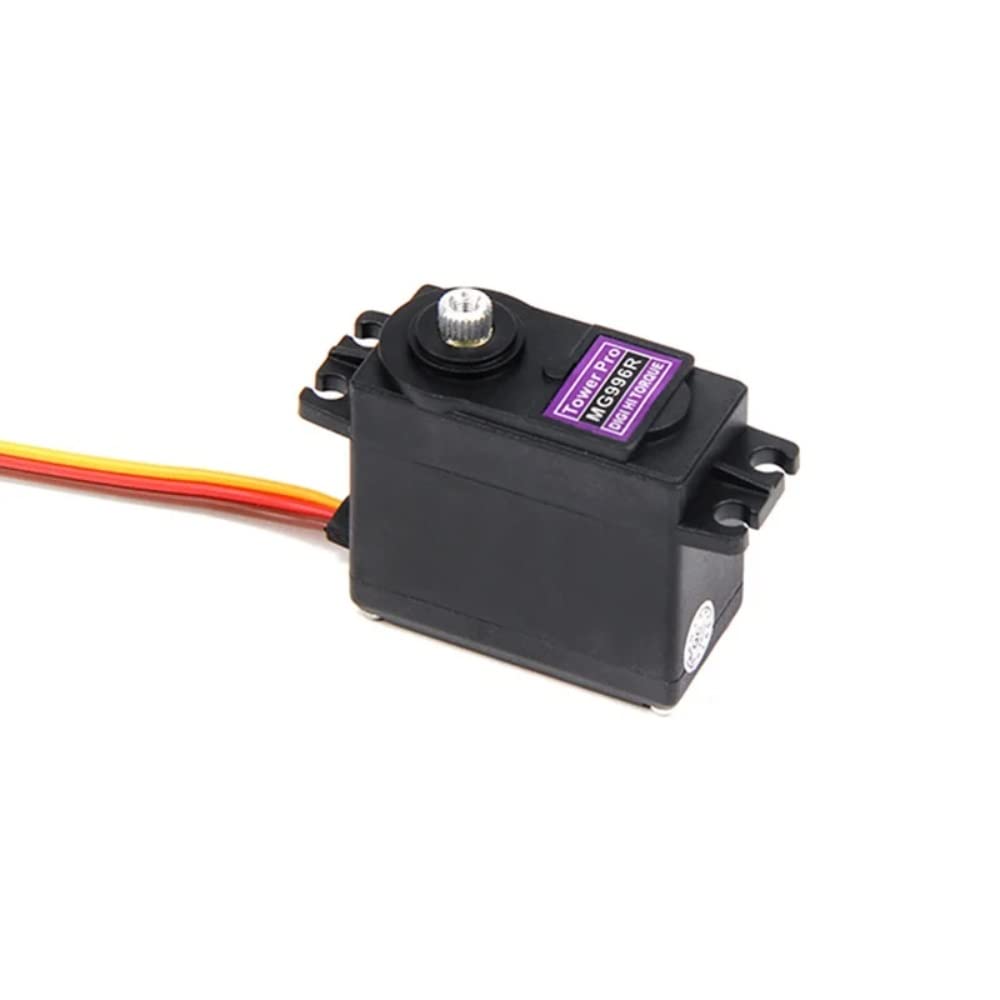

The TowerPro MG996R is an upgraded version of the MG995 servo. The new PCB and IC control system makes it far more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centring. It is a great choice for 1/10 buggy and airplane helicopters, RC cars from 10 to 6-th scale truggy and monsters, RC models, and robotics applications.

Specification:

Weight: 55g

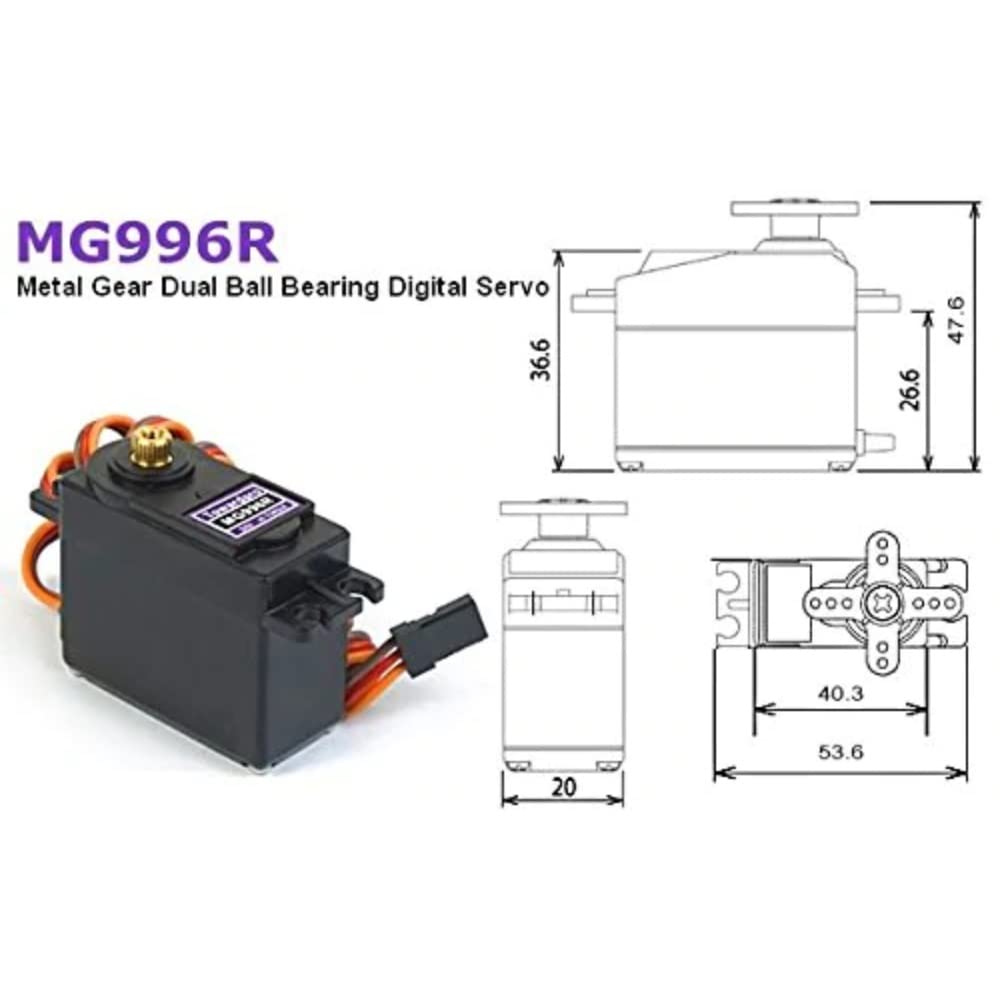

Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8~ 6.6v
Gear Type: Metal gear
Temperature range: 0- 55deg
Servo Plug: JR (Fits JR and Futaba)
Dead band width: 1us
Servo wire length: 32cm
Current draw at idle 10mA
No load operating current draw 170mA
Stall current draw 1400mA

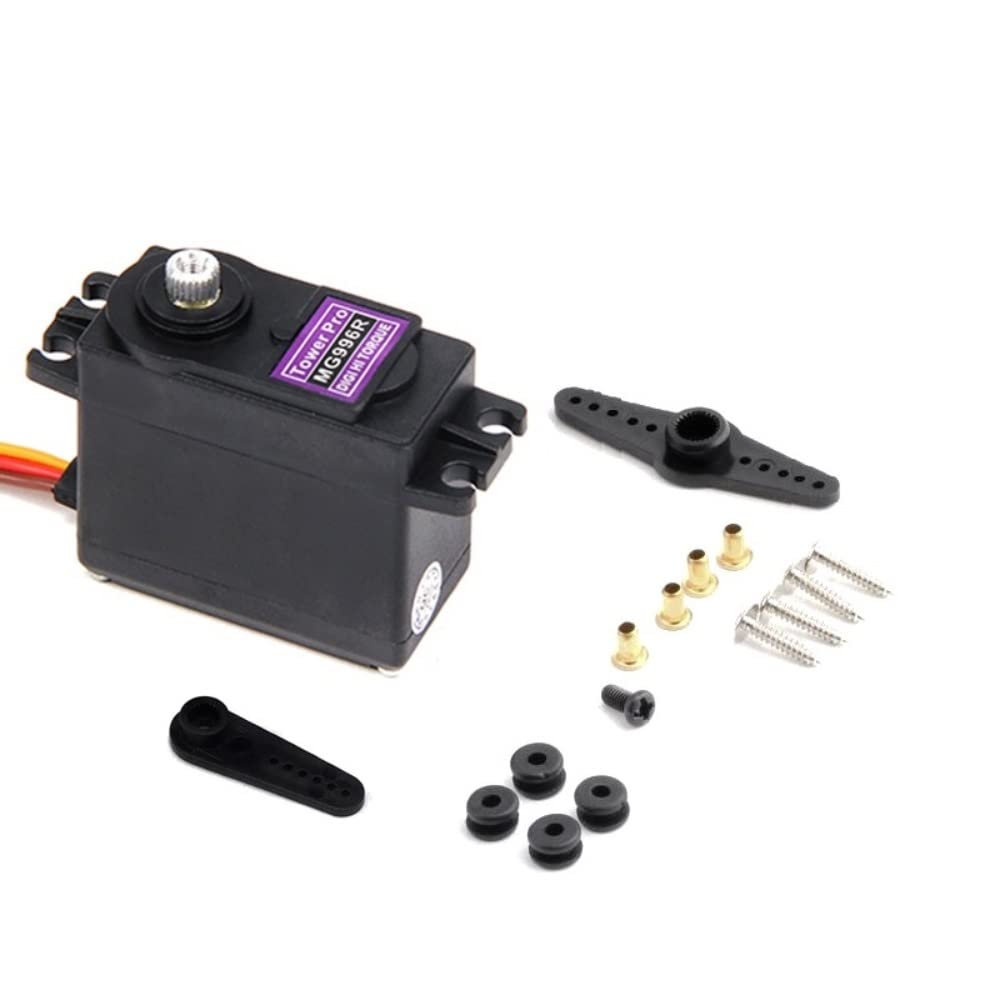

Servo arms & screws included. Compatible with Futaba servo arm
The universal “S” type connector fits most receivers, including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, and Spektrum.
