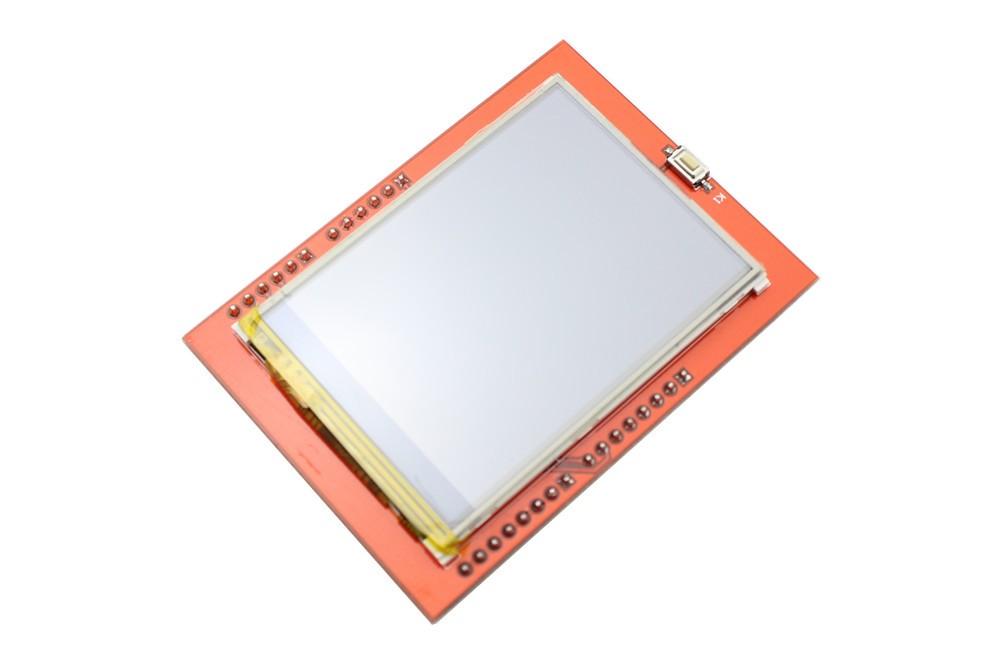

2.4" TFT LCD Touch Screen Module for Arduino

The 2.4 inch TFT Touch Screen Module with micro SD card slot is now available as a SHIELD for Arduino UNO. It has a four wire resistive touch screen, a micro SD card socket, a reset switch and a convenient Arduino Uno shield footprint.

Features

  • Colorful, 18-bit 262,000 different shades
  • Bright, 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
  • Works with any Arduino 328 or Mega (Leonardo not supported yet)

Specifications

  • 2.4″ diagonal LCD TFT display
  • 240×320 resolution
  • 5V compatible! Use with 3.3V or 5V logic
  • Onboard 3.3V 300mA LDO regulator
  • 8 bit digital interface, plus 4 control lines
  • 4-wire resistive touchscreen
  • Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD

Package list

  • 2.4" TFT LCD Touch Screen Module x 1
