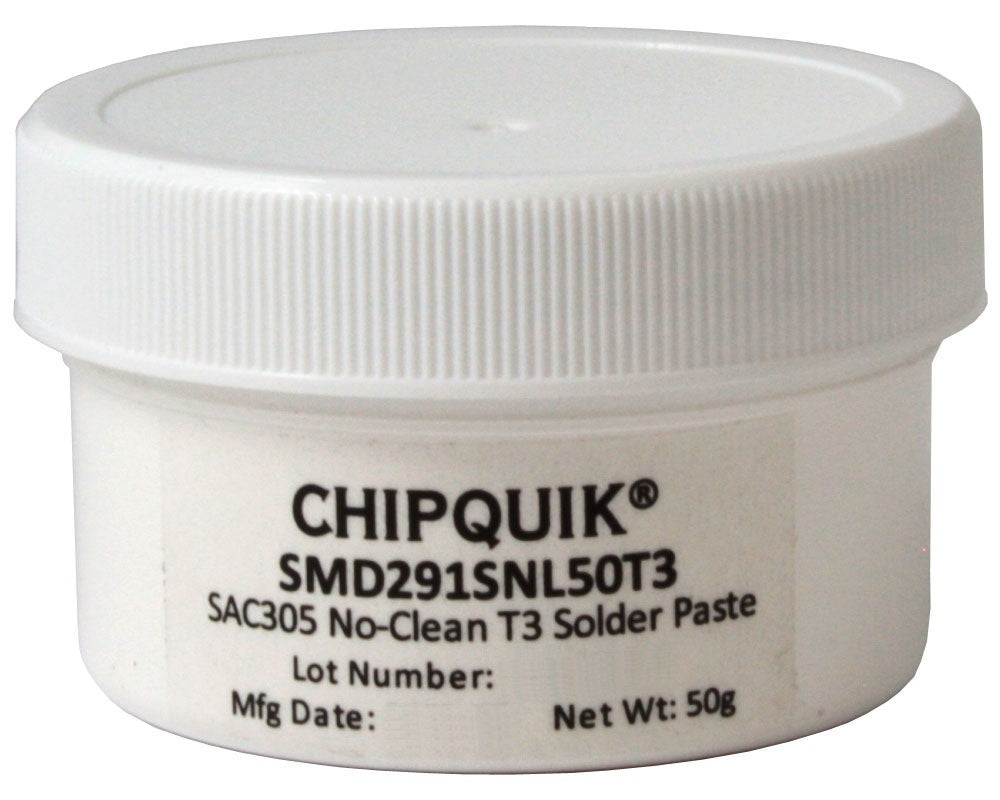

This is 50g of high quality, Lead-Free Solder Paste, the perfect amount to keep around for prototyping and hobby projects that require a bit of SMD soldering. Solder Paste Stenciling is the easiest and quickest way to solder some of the trickier SMD components. Here at SparkFun, we use solder paste stenciling on pretty much all of our boards. It saves us a lot of time. But stenciling takes more than just a stencil and a dream... you're going to need some paste.

The composition of this paste is Sn: 96.5%, Ag: 3%, Cu: .5%

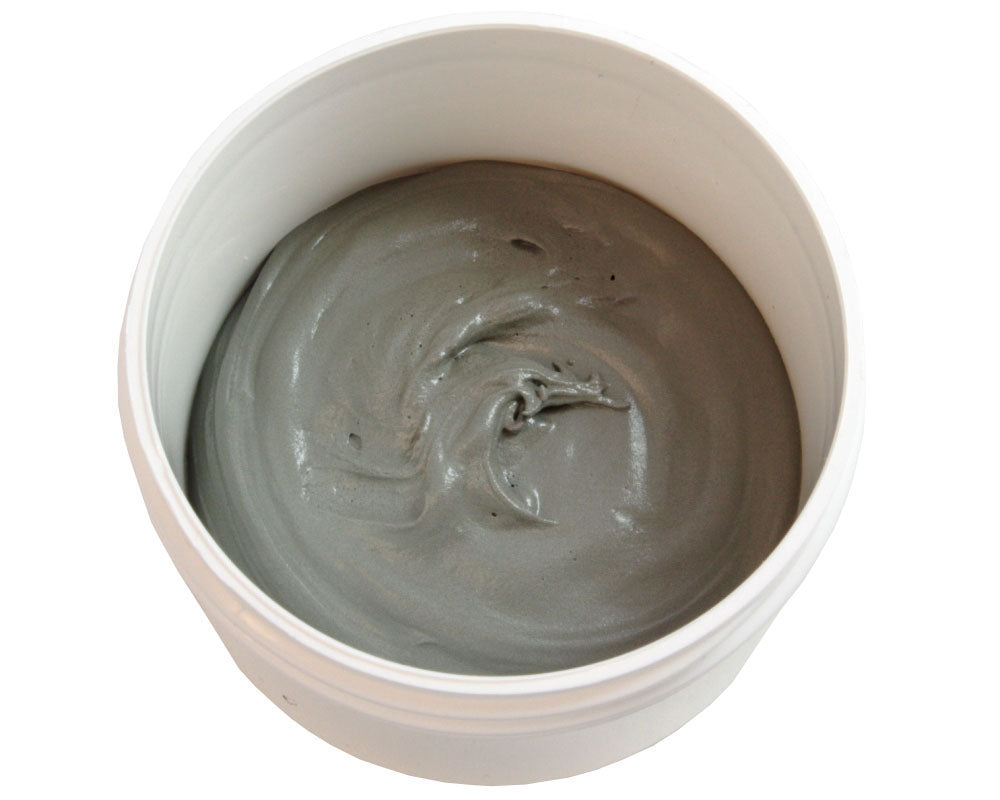

Note: Although this Solder Paste comes in 100g containers, it contains 50g of paste. The container is not intended to be full.

Specifications
Alloy: Sn96.5/Ag3.0/Cu0.5
Flux Type: Synthetic No-Clean
Flux Classification: REL0
Metal Content: 88.5% metal by weight.
Particle Size: T3 (25-45 microns)
Melting Point: 217-220C (423-428F)
Size: 50g jar

Shelf Life
Refrigerated >6 months, unrefrigerated >2 months

Stencil Life
>8 hours @ 20-50% RH 22-28C (72-82F)
>4 hours @ 50-70% RH 22-28C (72-82F)

Stencil Cleaning
Automated stencil cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA).

Storage and Handling
Refrigerate at 3-8C (37-46F). Do not freeze. Allow 4 hours for solder paste to reach an operating temperature of 20-25C (68-77F) before use.

Transportation
This product has no shipping restrictions. Shipping below 0C (32F) or above 25C (77F) for normal transit times by ground or air will not impact this product's stated shelf life.
